SPECIFICATIONS

Special Features: Other Special Functions

Power Supply: Plug Powered

Operating Voltage: 110V

Rated Power(W): 4500

Item ID: FL238430

Application

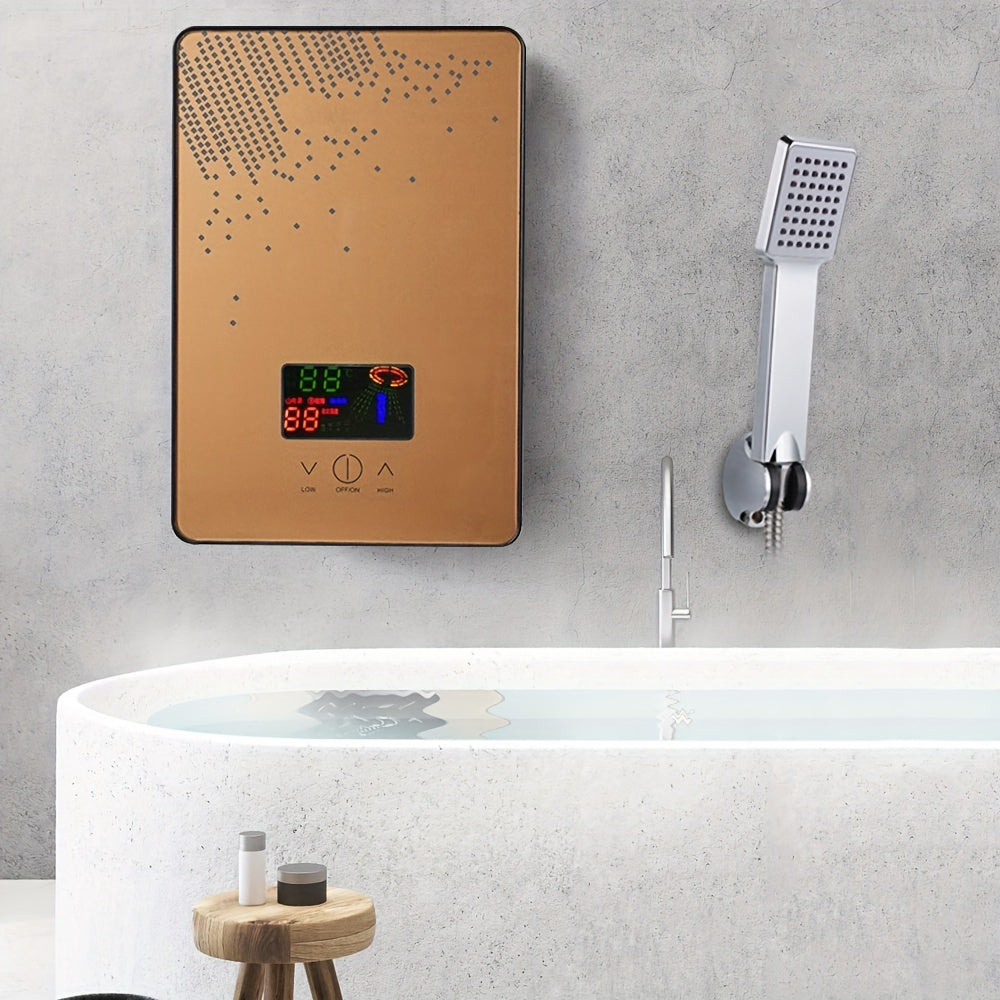

This product is suitable for use in kitchens, bathrooms, restaurants, schools, hairdressing salons, hotels, etc. for dishwashing, laundry, baths, and showers.

Specifications
Style: Modern
Shape: Rectangular
Color: Gold
Material: PC, Tempered Glass, Stainless Steel
Surface Treatment: Polishing
Water Inlet: Lower Inlet
Mount Type: Wall Mounted
Installation Required: Yes
Support Thermostat: Yes
Screen Type: LED
Control Mode: Touch Control
Water Heater Lift: Unlimited

Heating Time: 3 Seconds Instant Heat
Waterproof Level: IPX4
Rated Voltage: AC 110V, 60HZ
Rated Power: 4500W
Rated Current: 40.9A
Rated Water Pressure: 0.6Mpa
Applicable Pressure: 0.02-0.6 MPa
Water Flow: 4L/1.06 gal/ min
Water Flow to Activate: 1.2-1.5L/0.32-0.4 gal/min
Temperature: 30-55℃/ 86-131 ℉
Automatic Power-off Protection Temperature: 55℃/ 131 ℉
Air Switch: ≥40A
Wire Diameter: ≥4mm/0.16 in

Magnetic Card Table: 10 (40) A
Mechanical Watch: ≥5(20)A
Wire Requirements ≥ 4 Square Copper Core Wire
Hot Water Outlet Pipe Connector Diameter: 0.7cm/ 0.3in (Inner Diameter); 2cm/ 0.8in (Outer Diameter)
Cold Water Inlet Pipe Connector Diameter:1.2cm/ 0.5in (Inner Diameter); 2cm/ 0.8in (Outer Diameter)
Gross Weight: 2.2kg/ 4.85 lbs
Net Weight: 2kg/ 4.41 lbs

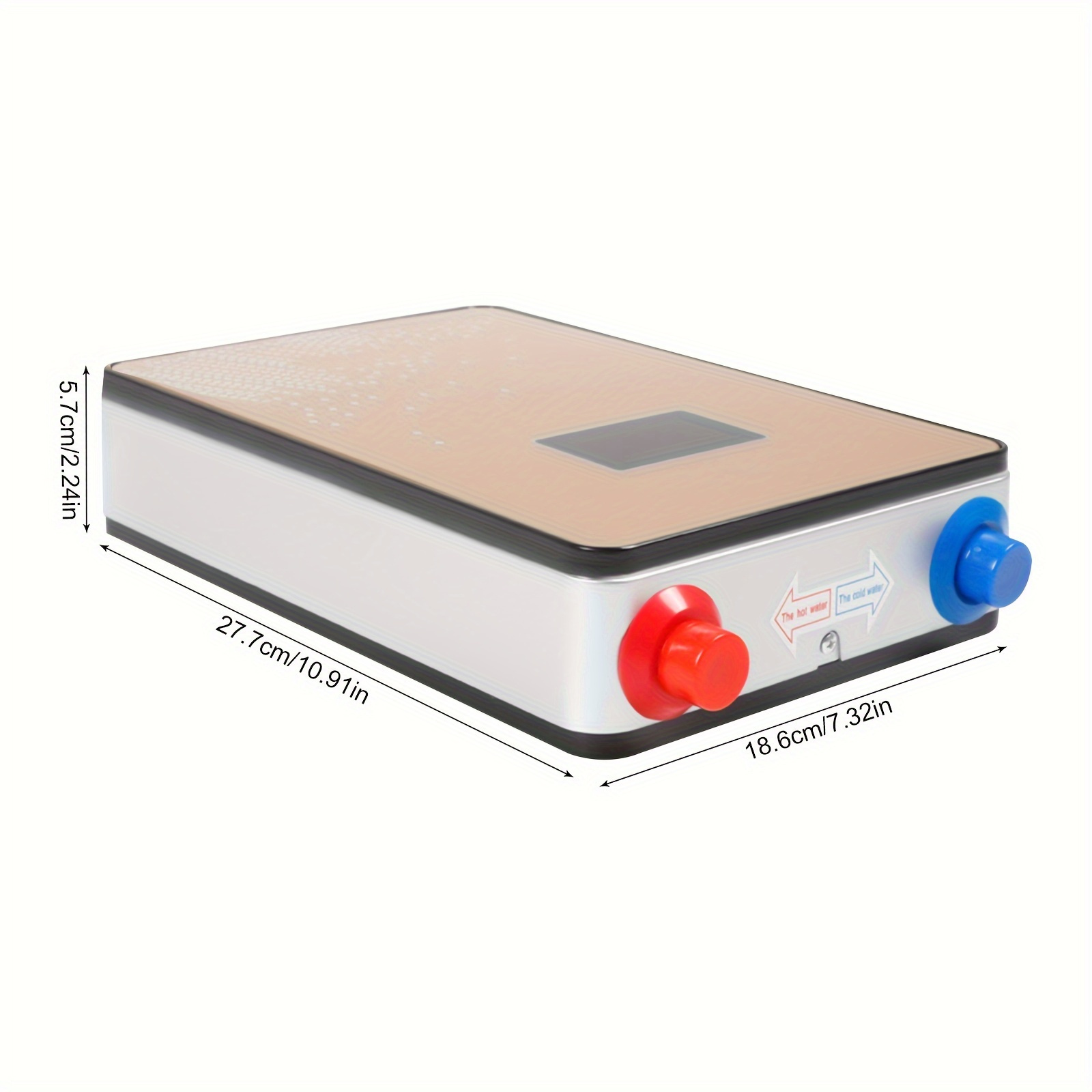

Product Size: 27.7*18.6*5.7cm/10.9*7.32*2.24 in
Package Size: 32*27*12.5cm/ 12.6*10.63*4.92 in

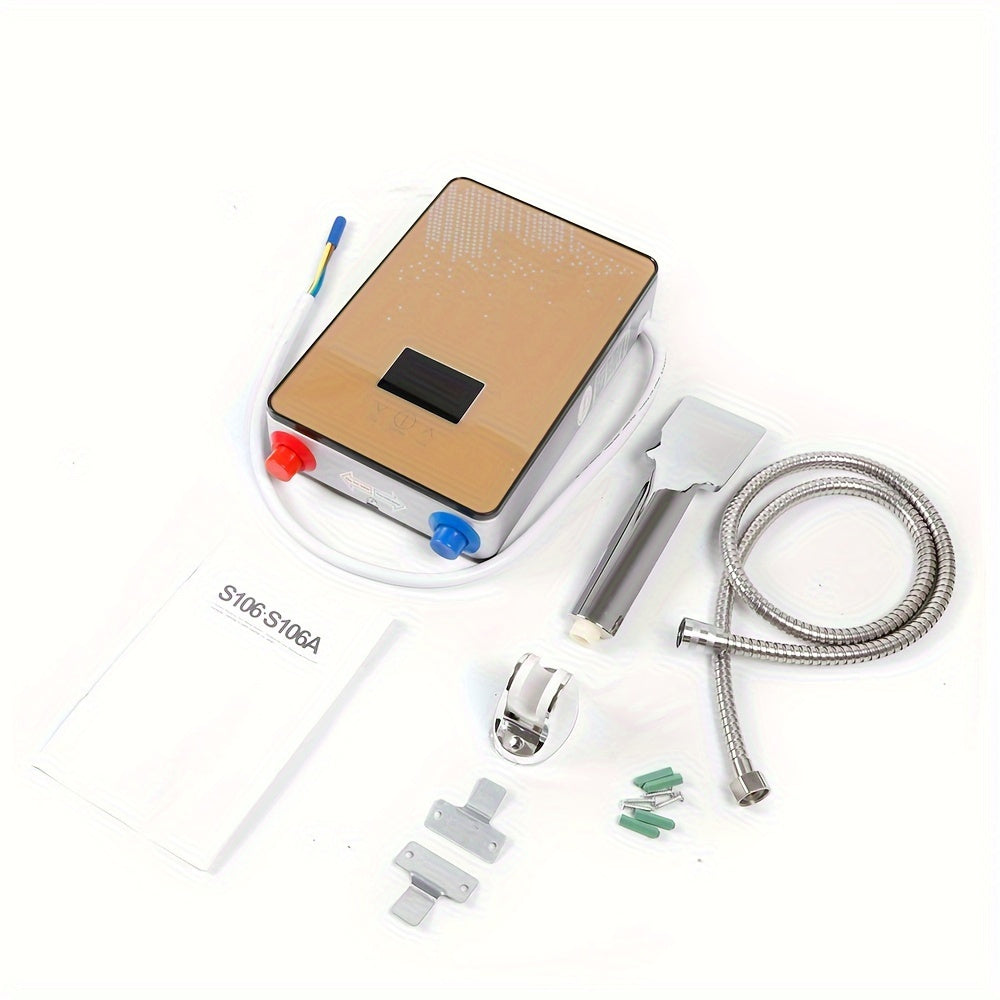

Package Included
1* Instant Water Heater
1* Shower Head
1* Shower Hose

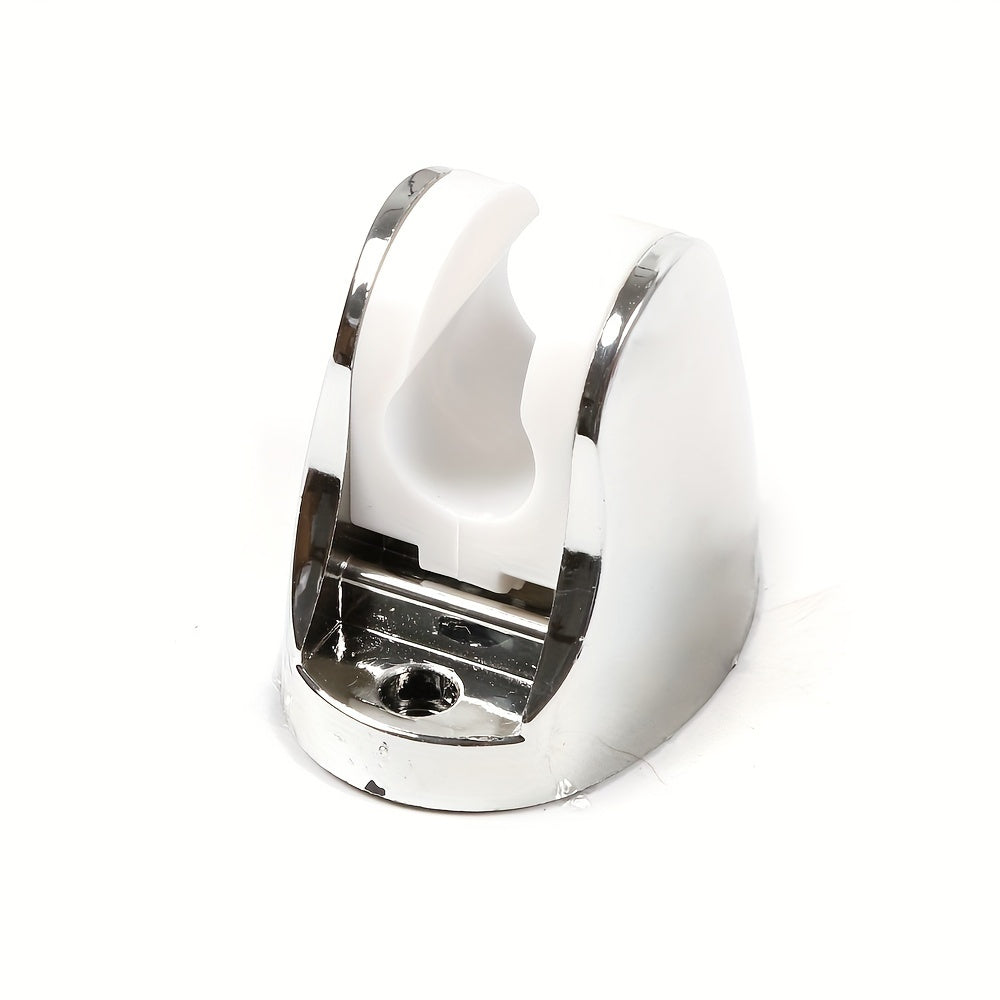

1* Shower Holder
1* English Manual

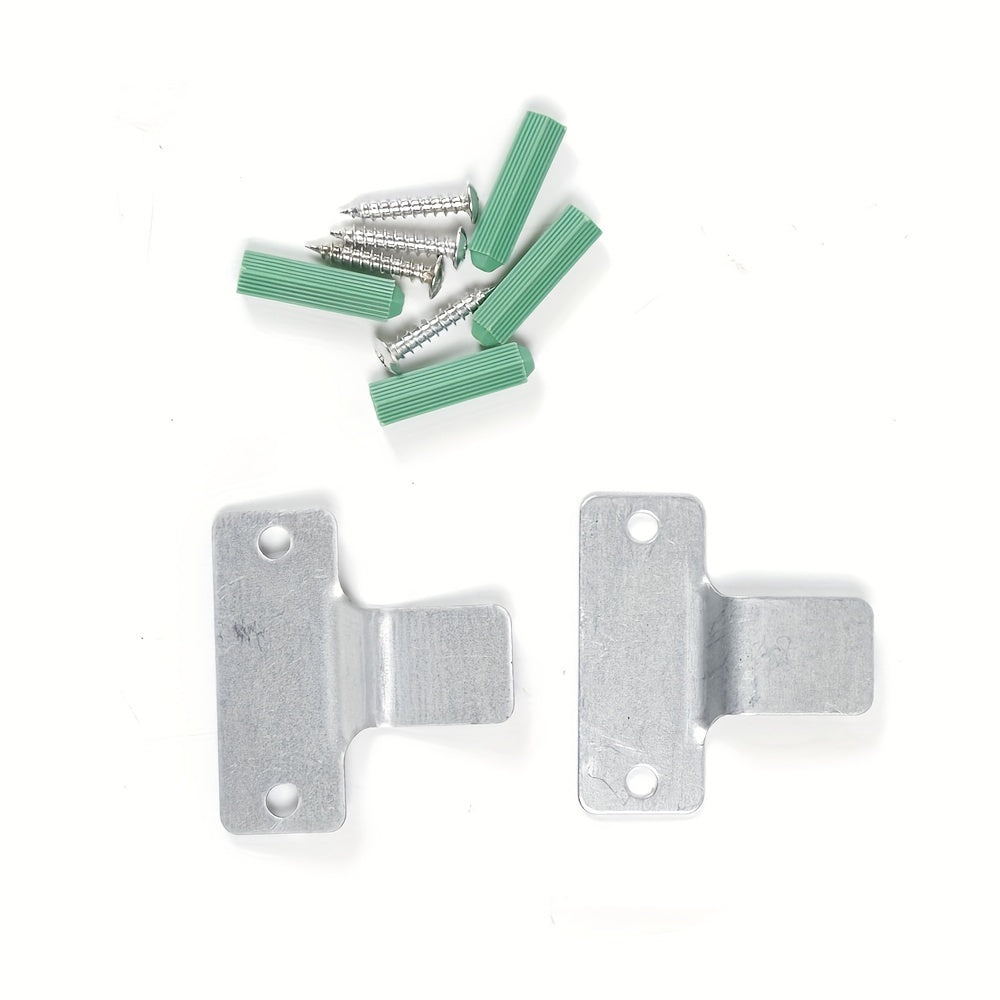

Other Accessories Required for Installation

Notes
1.Please note that the water heater must be equipped with a ground electrode and leakage protector.
2.Please note that the water source must be connected before power is turned on.
3.Please note that it is strictly prohibited to heat the water heater when there is no water or when it is frozen. Dry burning is strictly prohibited. Do not use this product when the temperature is lower than 32 ℉.
4.Please test the water temperature with your hand before use to avoid burns.

5.Please note that after the water heater is used for a period of time, water quality problems will occur, which will result in uneven heating and easy to burn the motherboard. If the user does not use it for a long time, it is recommended to rinse it again when using it again.
6.Please note that if the local temperature is relatively low, the use of water flow is relatively large, and the water temperature can only rise to a certain temperature.

7.Please note that the water provided by this product is not recommended for direct drinking.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
